Introduction

We will be turning a Command Line Interface (CLI) Redhat 9 server hosted at Amazon on EC2 into a full Xwindows based workstation that you can use Remote Desktop Protocal (RDP) to using xRDP.

Installation

Install the updates on your fresh server from Amazon.

sudo dnf update -y

Install “Extra Packages for Enterprise Linux” (EPEL).

sudo dnf install -y https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm
sudo dnf repolist
sudo dnf makecache

Install “Workstation” or “Server with GUI” (not both)

sudo dnf -y group install Workstation

Install XRDP

sudo dnf install -y tigervnc-server xrdp
sudo systemctl enable xrdp.service
sudo systemctl start xrdp.service
sudo systemctl status xrdp.service
sudo netstat -antp | grep xrdp

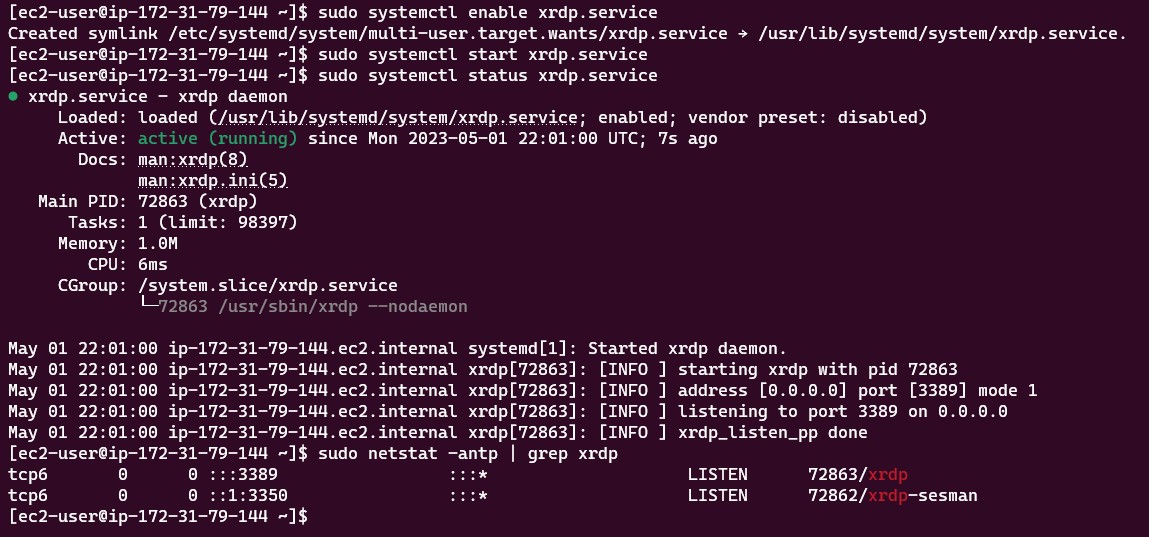

Example of successful installation:

If you have firewalld running, open the RDP port on RHEL, note on the EC2 instance we did this on, firewalld was not even installed because there is also an Amazon firewall.

sudo firewall-cmd –permanent –add-port=3389/tcp
sudo firewall-cmd –reload

If you decide you want to completely shutdown firewalld here are the commands:

sudo systemctl stop firewalld.service
sudo systemctl disable firewalld.service

Assign a regular password to the user for RDP

sudo passwd ec2-user

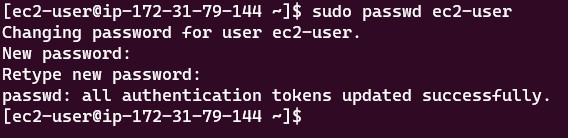

Example on how to change the password:

On Amazon EC2, modify the security group to allow RDP Traffic, you should be as restrictive as possible on which Internet Protocal (IP) Addresses are allowed to access your RDP Port.

Connect to your RHEL 9 server using Amazon’s external IP Address and the account you setup the password

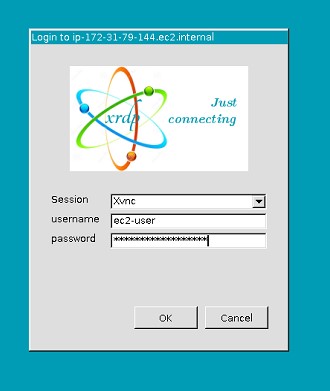

The first time connecting will prompt you for the password

Successful RDP Session to RHEL 9!
