Introduction

Alfresco is a Content Management System, recently purchased by Hyland. I needed to write a query for Oracle and Microsoft SQL that would loop through its database and build a folder structure recursivily from its tables. These snippets of SQL are what I came up with.

Microsoft SQL Server

This Article here is probably the best article I’ve found that explains MS SQL Recursion with a working example. https://www.andrewvillazon.com/recursive-cte-sql-server/

Alfresco MS SQL Recursion to get Folder Pathes

WITH ancestor AS
-- Base Query
(SELECT
	a1.parent_node_id,
    a1.child_node_id as node_id,
    a1.qname_localname AS name,
	CAST(a1.qname_localname as VARCHAR(MAX)) as path
  FROM alf_child_assoc AS a1
  -- Anchor
  WHERE a1.qname_localname ='company_home'
  UNION ALL
-- Recursion
  SELECT
	a2.parent_node_id,
    a2.child_node_id as node_id,
    a2.qname_localname AS name,
	CAST(ancestor.path + '\' + a2.qname_localname as VARCHAR(MAX)) as path
  FROM ancestor, alf_child_assoc AS a2
  WHERE ancestor.node_id = a2.parent_node_id
)select * from ancestor

SQL Server when it does recursion only needs the child’s name in the parent-child relationship to make a tree structure. With Oracle however, it appears you need a parent and a child’s name to properly populate a recursive tree from the same table and rows.

Additionally on Oracle since I had to retrieve the parent’s name from Node Properties, I also pulled the child’s name from Node Properties for consistancy sakes.

Oracle Server

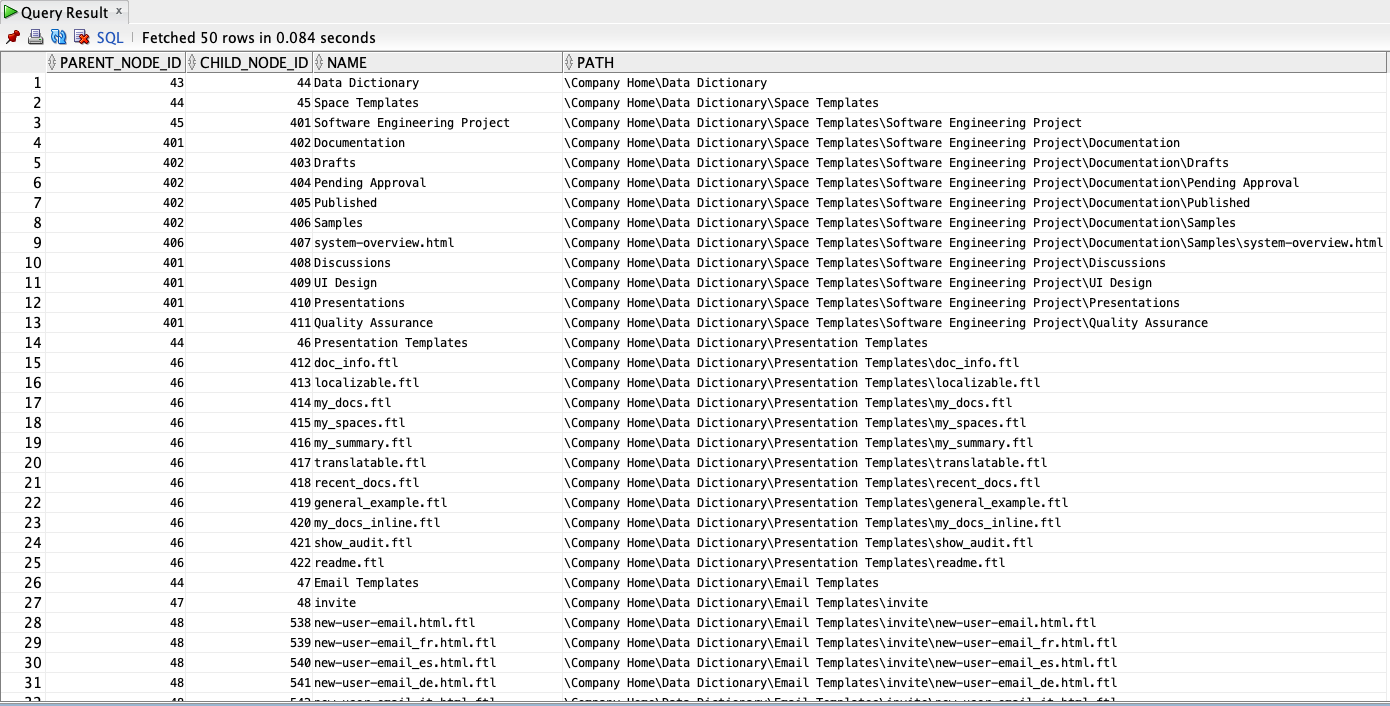

SELECT
    parent_node_id,
    child_node_id,
    child_string_value name,
    sys_connect_by_path(parent_string_value, '\') || '\' || child_string_value AS path
        FROM
            (
                -- Base Query
                SELECT
                    alf_child_assoc.parent_node_id,
                    alf_child_assoc.child_node_id,
                    parent_node_properties.string_value parent_string_value,
                    child_node_properties.string_value  child_string_value
                FROM
                    alf_child_assoc,
                    alf_node_properties child_node_properties,
                    alf_node_properties parent_node_properties
                WHERE

                    -- Child's name.
                        alf_child_assoc.child_node_id = child_node_properties.node_id
                    AND parent_node_properties.qname_id IN (
                        SELECT
                            id
                        FROM
                            alf_qname
                        WHERE
                            local_name = 'name'
                    )
                    AND

                    -- Parent's name
                     alf_child_assoc.parent_node_id = parent_node_properties.node_id
                    AND child_node_properties.qname_id IN (
                        SELECT
                            id
                        FROM
                            alf_qname
                        WHERE
                            local_name = 'name'
                    )
            ) folders

        -- Anchor
        START WITH

            parent_node_id = (
                SELECT
                    node_id
                FROM
                    alf_node_properties
                WHERE
                        string_value = 'Company Home'
                    AND qname_id IN (
                        SELECT
                            id
                        FROM
                            alf_qname
                        WHERE
                            local_name = 'name'
                    )
            )

        -- Recursion
        CONNECT BY
            PRIOR child_node_id = parent_node_id
