Kubernetes on Redhat Enterprise Linux 8
Installation of Kubernetes Server
Introduction
We will install a Kubernetes on RHEL 8 with CRI-O, and Podman. We are using an r5.large on Amazon EC2 using Amazon’s provided Red Hat Enterprise Linux 8.
Installation
Install the updates on your fresh server from Amazon.
sudo dnf update -y
sudo dnf install net-tools -y
Setup DNS or atleast Hostname entries in your /etc/hosts file
sudo hostnamectl set-hostname k8.obert.dev
sudo init 6
echo `/sbin/ifconfig eth0 | grep 'inet ' | awk {'print $2'}` ${HOSTNAME} | sudo tee -a /etc/hosts
Set selinux to permissive
sudo setenforce 0
sudo sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
sestatus
Disable swap
sudo swapoff -a
sudo sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab
free -m
Enable the kernel modules: overlay & br_netfilter
sudo modprobe overlay
sudo modprobe br_netfilter
Create script to load modules on every reboot
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF
cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF

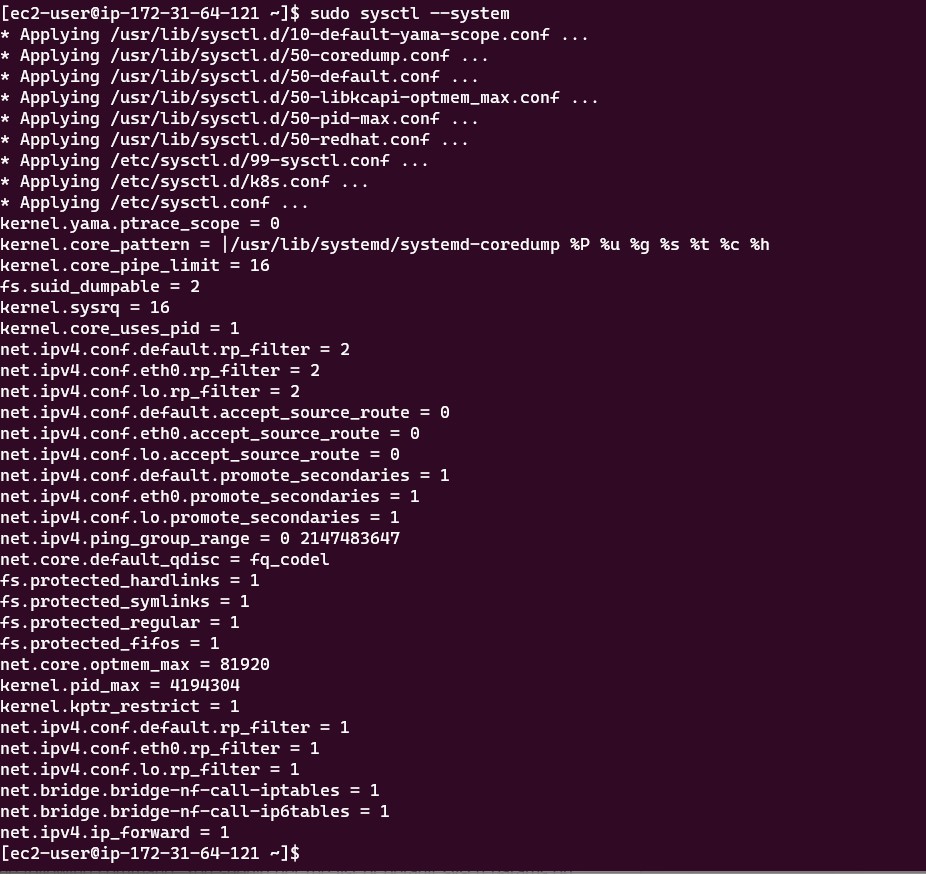

sudo sysctl --system
Verify the 3 net commands in previous step are in output
Instal CRI-O, set the version to the current version first!
export VERSION=1.28
sudo curl -L -o /etc/yum.repos.d/devel:kubic:libcontainers:stable.repo https://download.opensuse.org/repositories/devel:/kubic:/libcontainers:/stable/CentOS_8/devel:kubic:libcontainers:stable.repo
sudo curl -L -o /etc/yum.repos.d/devel:kubic:libcontainers:stable:cri-o:$VERSION.repo https://download.opensuse.org/repositories/devel:kubic:libcontainers:stable:cri-o:$VERSION/CentOS_8/devel:kubic:libcontainers:stable:cri-o:$VERSION.repo
sudo dnf repolist
sudo dnf makecache
sudo dnf install -y cri-o
sudo systemctl enable crio
sudo systemctl start crio
sudo systemctl status crio

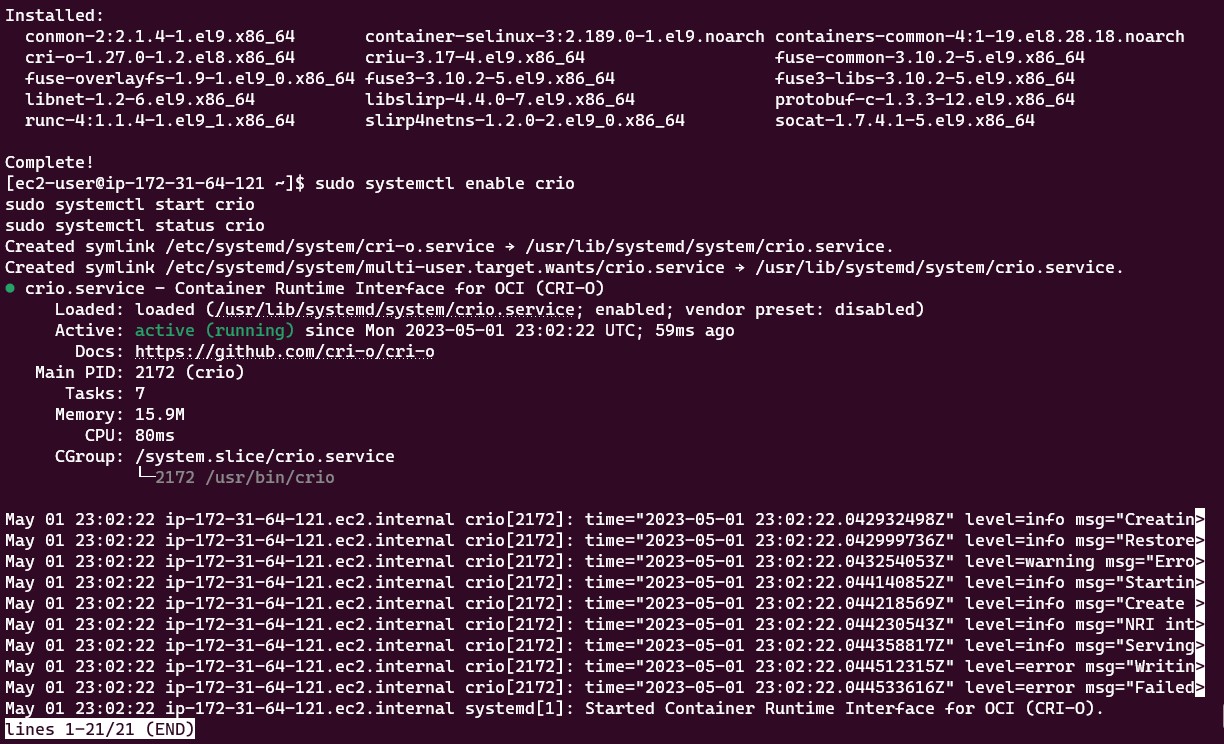

cri-o installed:
Verify Kernel Modules are Loaded
lsmod | grep br_netfilter
Install Kubernetes
cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-\$basearch
enabled=1
gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
exclude=kubelet kubeadm kubectl
EOF
sudo dnf repolist
sudo dnf makecache
sudo dnf install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
sudo systemctl enable --now kubelet
sudo kubeadm config images pull
At this point you need to decide which ip address you want to choose to use, as well as which Container Network Interface. We are choosing Calico with the default IP Range of 192.168.10.0/16. We are also assuming the control plan endpoint is this local machine’s hostname that we put in /etc/hosts
sudo kubeadm init --pod-network-cidr=192.168.10.0/16 --control-plane-endpoint ${HOSTNAME}
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
echo export KUBECONFIG=/etc/kubernetes/admin.conf | tee -a /root/.bashrc
Remote taints from Node so it can schedule containers on this Kubernetes node. (Note: the master taint is usually not necessary)
kubectl taint nodes --all node-role.kubernetes.io/master-
kubectl taint nodes --all node-role.kubernetes.io/control-plane-
Install Container Network Interface (CNI) - Calico. Note if you choose a different IP Range you will need to modify this Yaml file. If you used the default of 192.168.10/16, you will be happy. Also verify you are using the newest/stable calico.
kubectl apply -f https://raw.githubusercontent.com/projectcalico/calico/v3.26.3/manifests/calico.yaml

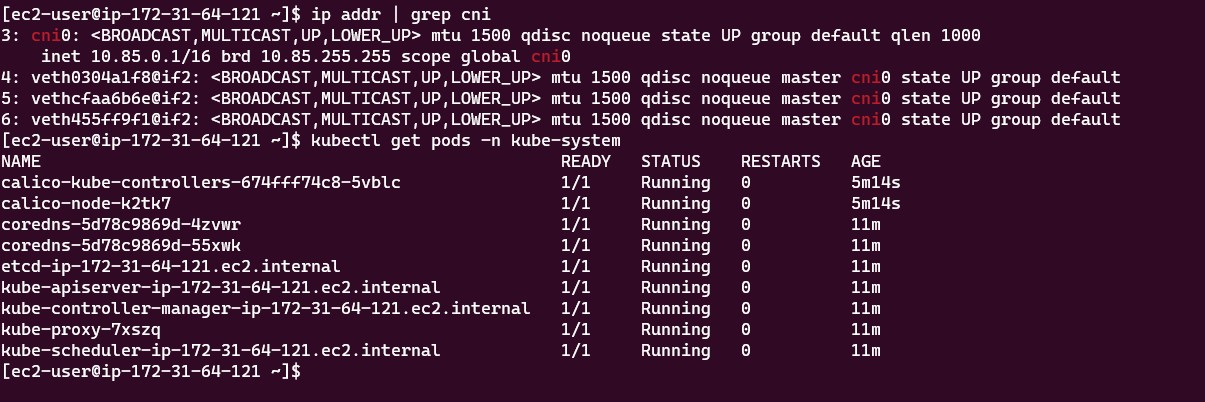

ip addr | grep cni
kubectl get pods -n kube-system
There should be a new network interface named ‘cni0’ as well as the pods should be Running. (this might take a few minutes if you have a slow computer)

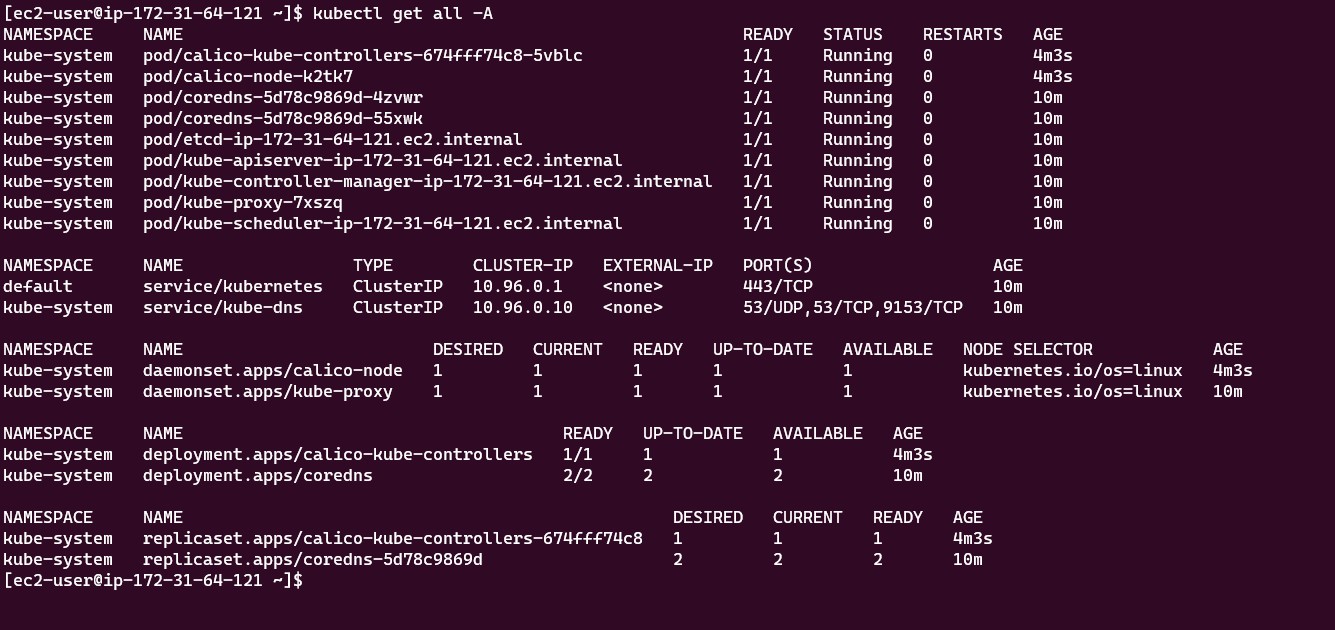

Inspect Kubernetes, its online!
On RHEL9 to create Container images we recommend Podman over Docker
sudo dnf group install -y "Container Management"
sudo dnf install -y podman-docker
sudo touch /etc/containers/nodocker
sudo dnf install -y podman-remote
sudo dnf install -y skopeo
Now you have a complete Kubernetes server on RHEL 8 with all the container tools!
If you are new to podman, skopeo, buildah, or want a refresher there is a great whitepaper at redhat. You can access it with a free Developer account at Redhat: RHEL 9 building running and managing containers PDF.
